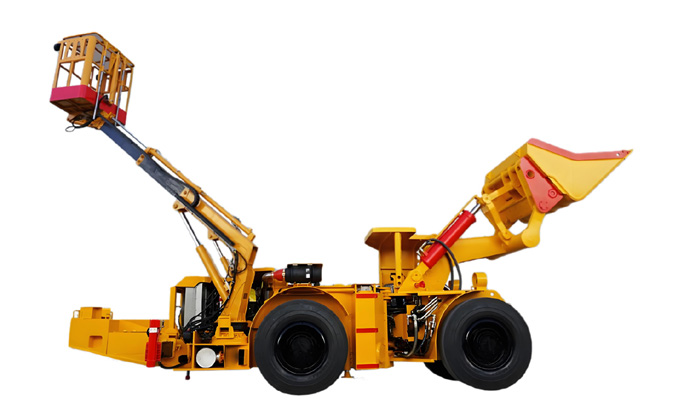

WJS-1.5 Multi-Engineering Service Vehicle

WJS-1.5 multi-engineering service vehicle is a low profile, centrally articulated multifunctional operation

equipment specially designed for underground mine operations. The front vehicle can rapidly switch bucket

and fork, and the rear vehicle is equipped with telescopic arm lifting equipment. When the front vehicle is equipped with a bucket, the bucket shovel mass is 2t, which can be used to transport sand and gravel, and the bucket stowage volume reaches 1.5m³; when the front vehicle is equipped with a fork, it can be used for short-distance transportation and lifting of bricks, and its lifting height is greater than 1.5m; the rear vehicle lifting equipment can meet the requirements of 5.5m high and 5.5m wide tunnel operations, and the pod lifting weight is not less than 400kg, 1-person and small-amount tool lifting and lowering operations are allowed. It can also be used in railway and highway tunnel projects, so it has a broad use.


1758036946558928.jpg未标题-1 拷贝.jpgWSJ-1.5 (2).jpegWSJ-1.5 (3).jpeg
