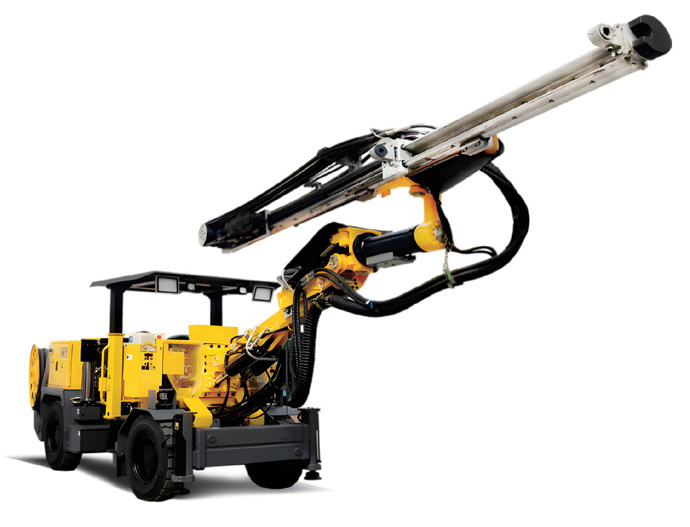

CYTJ45 Hydraulic Drilling Jumbo are widely used in many fields, including small and medium-sized underground water conservancy and hydropower facilities, highway and railway tunnel construction, chemical mines, and other metal mines,  it is suitable for various rocks and effectively in hard rocks.

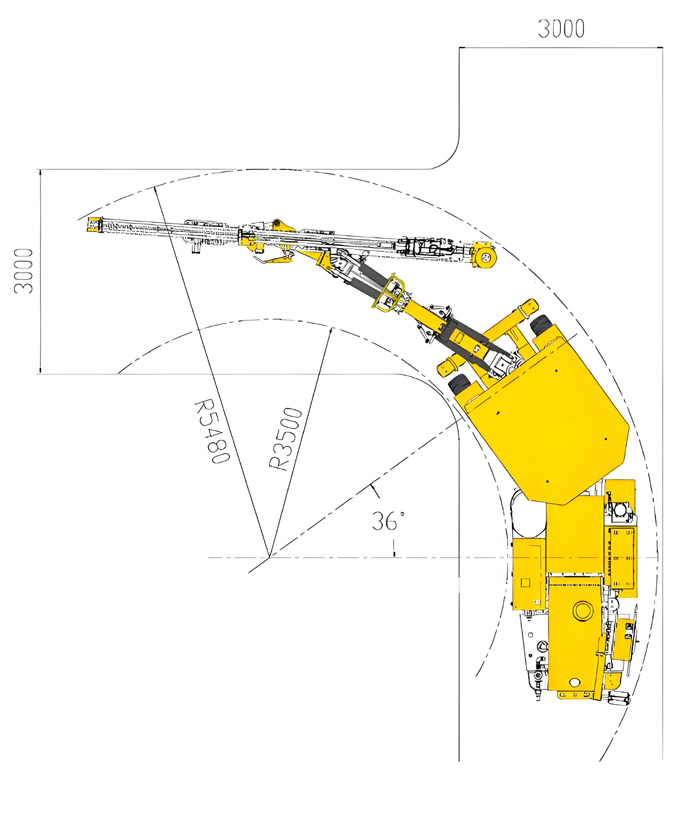

The jumbo is equipped with imported performance drifter, which can drill Φ45-64mm blast holes and Φ76-102mm cutting holes. The boom has automatic parallel moving function, large swing angle from left to right and wide tilting range of up and down, ensures a large drilling coverage after the jumbo positioned. The feed can achieve 360° all-round vertical rotation, ensures efficient and fast tunneling progress and accuracy. With excellent versatility and performance, it shows significant advantages in similar products.
