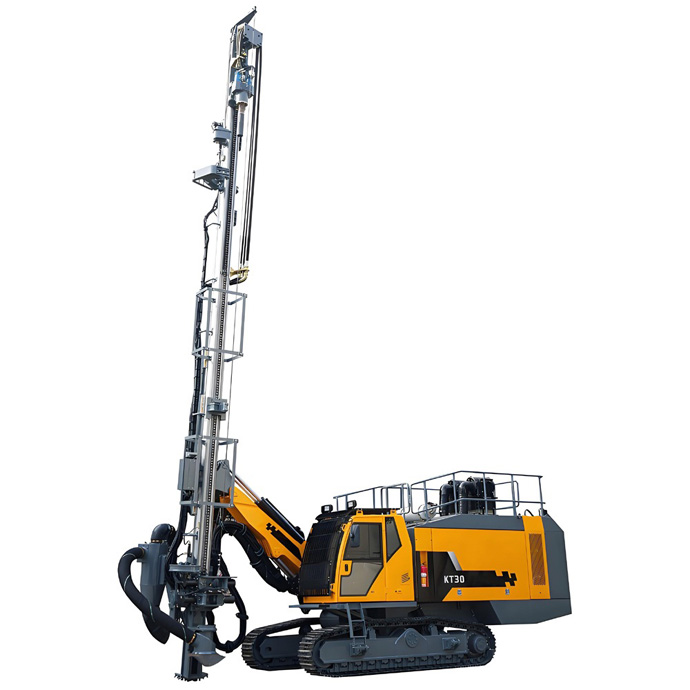

The KT30 integrated down the hole drill rig for open use can drilling vertical and inclined holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes. It is driven by the Cummins diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system. The drill rig features aluminum guide rails for excellent drilling straightness, the two-stage screw compressor for enhanced air system stability, and long drill pipes to reduce rod-changing frequency. The drill rig is equipped with the drill pipe lubrication system, dry dust collection system, drill thread protection, drilling angle/depth display, automatic rod handler to reduce labor intensity, air-conditioned cab for comfortable operation, and auto-controlled anti-jamming valve to minimize sticking risks.

The drill rig employs a fully electronic control system with high sensitivity and labor-saving operation. It is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc.
